Run standards-based geotechnical calculations and turn laboratory measurements into traceable technical reports.

GeoLab Metrologia is an interactive Portuguese-language workspace for geotechnical laboratories and earthworks quality-control teams. Users can register project, contractor, sample, collection, and responsible-engineer metadata; choose among six soil-test workflows; enter laboratory measurements; review deterministic calculations and charts; run normative checks; and generate a formatted technical report. The inspected Proctor workflow calculates moisture values, wet and dry density, optimum moisture, maximum dry density, saturation, void ratio, field acceptance ranges, and degree-of-compaction targets. The application also exposes particle-size analysis, consistency and CBR, in-situ density, permeability, and configurable test modules, together with equipment records and a searchable session report library.

Highlights

Six Test Engines

Broad soil test coverage

Live Calculations

Metrics update from inputs

Normative Audit

ABNT and DNIT checks

Traceable Reports

Hash and report metadata

Technical Charts

Curves and result markers

How to Use

Register the project and sample
Start on the project page and review or replace the laboratory, contractor, work, registration, sample-origin, collection, test-date, and technical-responsibility fields. Confirm the metadata before moving to test selection because the values are carried into the final report.
Choose a test method
Open the tests page and select the required workflow from Proctor compaction, complete particle-size analysis, consistency limits and CBR, in-situ density, permeability, or a configurable method. Each card identifies its standards, purpose, and generated outputs before execution begins.
Enter and validate measurements

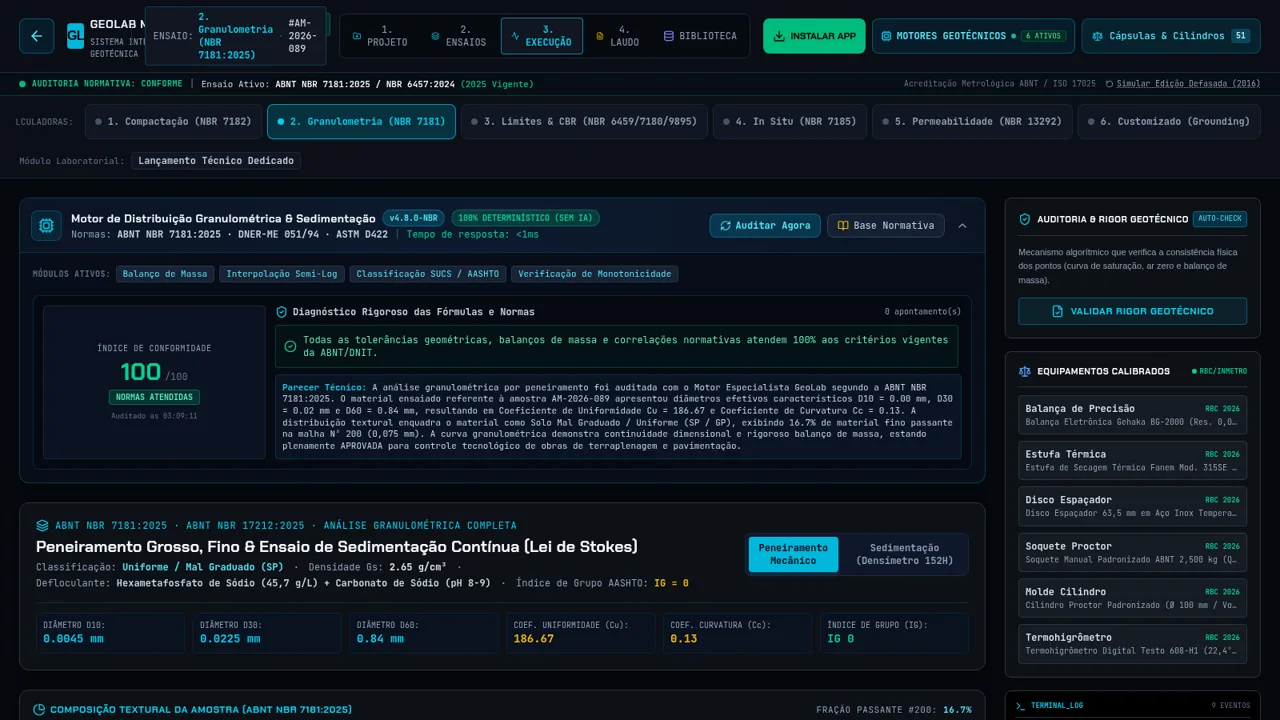

In the execution workspace, choose the energy or method preset and enter masses, volumes, moisture readings, capsule identifiers, cylinder values, or other method-specific measurements. Derived values, compliance indicators, tables, and charts respond to the current data, while the audit control checks physical and normative consistency.

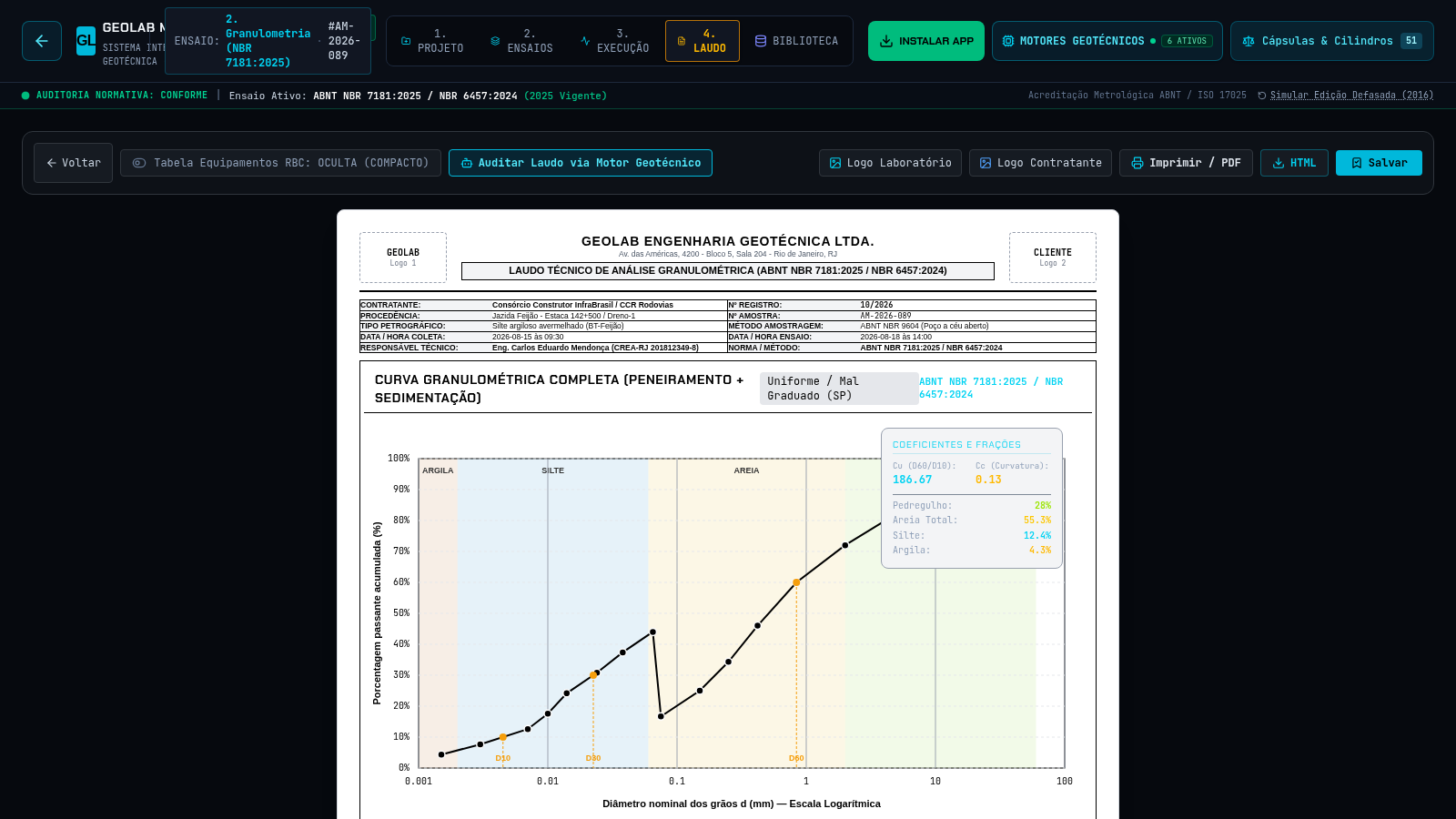

Review the official report
Generate the technical report after reviewing the computed results. The report consolidates project and sample metadata, measurement tables, charts, engineering conclusions, responsible parties, and SHA-256 traceability information, with controls for printing, HTML output, and saving.
Find saved reports
Use the library to search saved reports by project, registration number, contractor, or sample, and narrow the list by test type. The inspected library stores reports within the current session and was empty before a report was saved.
